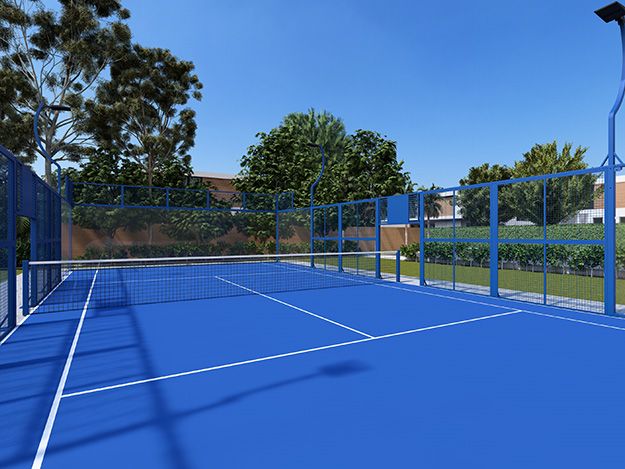

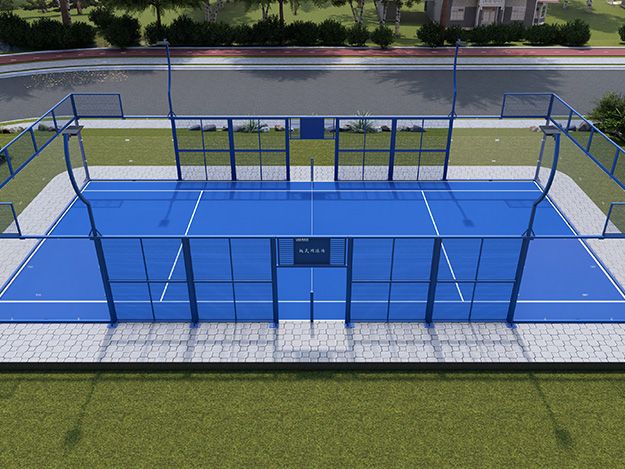

Model: UHS-0102 Padel Court
Material: Q235 Hot-Dip Galvanized Steel + Tempered Glass
Color: Royal Blue (Customizable)
Craftsmanship: Super weather-resistant polyester powder coating for 10-year color fastness and suitability for all-weather conditions.
Design: Optimized and upgraded structure for easy installation; unobstructed glass panels provide full panoramic visibility.
Court Dimensions (Inner): 10m × 20m
Frame Height: 3m
Mesh Specifications: 50×50mm mesh opening, 4mm wire diameter
Corner Posts: 100×100×2.5mm
Intermediate Posts / Top & Bottom Rails: 100×50×2.5mm
Light Arms: 60×60×2.0mm
Frame Color: Royal Blue
Net Posts: White
Turf Specifications:
Colors: Green / Blue (Customizable)
Pile Height: 13mm
Stitch Rate: 300 stitches/m
Gauge: 3/16"
Density: 63,000 stitches/m²
Yarn Weight: 9000D
Backing: SBR 210 m²
Standard Accessories: Padel court system, PSSX-300W LED lights × 4, net posts × 2, net, and turf.
Optional: Overhead divider netting,sliding track doors × 2.
From Tradition to Modernity
Generation 1
Satisfy the basic requirements for referees' officiating, but it is laborious to do so. There is no functionality or comfort to speak of.
Generation 2
Using steel materials, the structure becomes more stable and solid, emphasizing the use of materials and safety.
Generation 3
Add the mobile function. The aluminum alloy structure is rust-proof, lightweight and highly safe.
Generation 4(Latest)
Outstanding user experience design, with higher security, pursuing design and aesthetics, and achieving significant breakthroughs in functionality and comfort.
Epoch-Making Innovation
Open the Era of Intelligent Lifting
Overturn the Traditional Appearance Design
Make Umpine More Authoritative
Product Features
WTA Chairman and Chief Executive Officer Steve Simon
Power-off intelligent locking function
In case of power failure, the self-locking function will be activated to prevent sudden sliding down due to power outage and to avoid any accidents.
Strong power motor
The "heart" of the intelligent adjustable judge's chair, the powerful and efficient servo motor traction system;Realize quiet, smooth and fast elevation with high-quality experience; Overload protection switch, when the system current is overloaded or abnormal, it automatically enters the protection device to avoid system burnout.
Newly-developed environmentally friendly profiles
The structure is made of all-aluminum alloy profiles, and the components are made of stainless steel. It is solid and reliable, safe and environmentally friendly, and can adapt to various outdoor environments.
ErgonomicsErgonomics
The seat adopts an integrated molding technology and is equipped with a cushion that conforms to the ergonomic lumbar support design;It is made of high-resilience memory cotton with soft texture;It can disperse pressure on various parts and effectively relieve the backache and soreness in the waist and back caused by prolonged sitting.
International event standard design
It can rise and fall, operating from the lowest 0.5 meters up to a maximum of 2.1 meters.
Intelligent delay start and stop function for lifting and lowering operations
Maximize the degree of eliminating the sense of frustration during the lifting and lowering process.
High-precision heavy-duty sliding guide rails
Strong load-bearing capacity, maintaining unchanged shape under long-term pressure; smooth gliding, precise positioning.
Product Parameters
