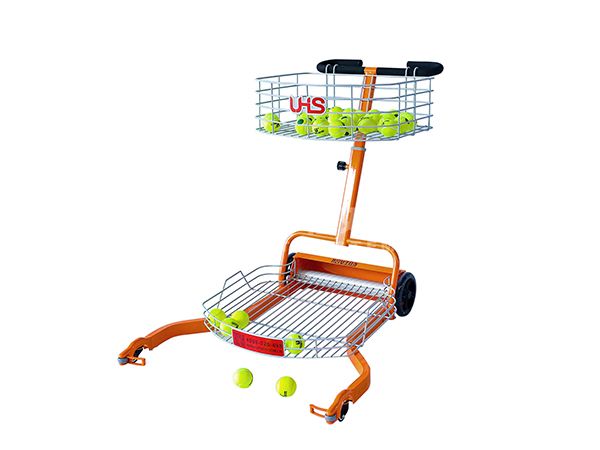

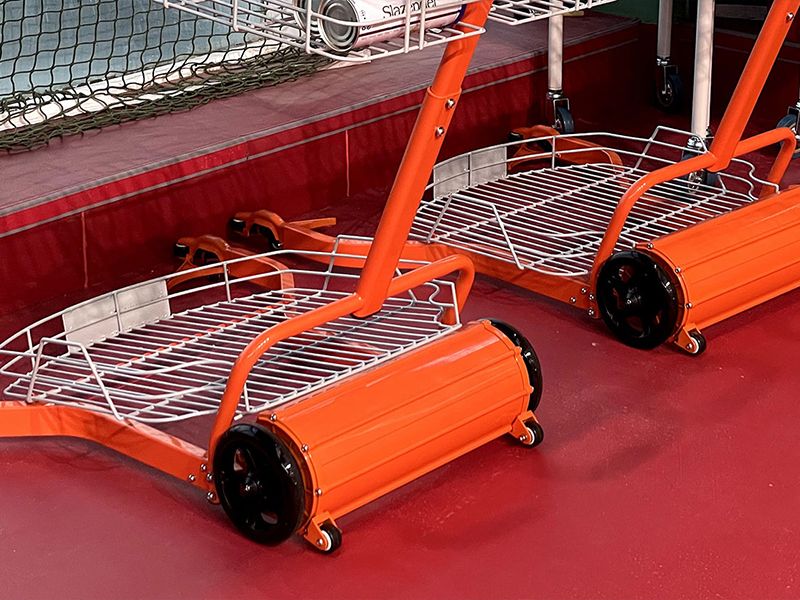

Material: The main body of the machine is made of high-quality reinforced structural aluminum alloy, which is recyclable and reusable
Design: Simple, compact structure, practical and user-friendly, with a forward-looking design
Power: No charging or power consumption required; powered solely by human pushing, environmentally friendly and energy-saving, with high ball collection efficiency
Dimensions (in working condition): 1250×850×960mm (adjustable between 660-1060mm)
Physical dimensions after installation allow a tolerance of ±20mm
Net Weight: 15.8kg
Gross Weight: 17.6kg (after packaging)
Ball Capacity: 200 balls
Collection Speed: Under normal operating conditions, it can collect 150-180 evenly scattered balls in half a court, taking about 2-3 minutes to fill the basket
Color: Orange, Red
Outer Box Dimensions: 670×635×290mm
Net Weight: 15.8Kg
Gross Weight: 17.6kg (after packaging)
Ball Capacity: 200 balls
Collection Speed: Under normal operating conditions, it can collect 150-180 balls evenly scattered in half a court, taking approximately 2-3 minutes to completely fill the basket.
From Tradition to Modernity
Generation 1
Satisfy the basic requirements for referees' officiating, but it is laborious to do so. There is no functionality or comfort to speak of.
Generation 2
Using steel materials, the structure becomes more stable and solid, emphasizing the use of materials and safety.
Generation 3
Add the mobile function. The aluminum alloy structure is rust-proof, lightweight and highly safe.
Generation 4(Latest)
Outstanding user experience design, with higher security, pursuing design and aesthetics, and achieving significant breakthroughs in functionality and comfort.
Epoch-Making Innovation
Open the Era of Intelligent Lifting
Overturn the Traditional Appearance Design
Make Umpine More Authoritative
Product Features
WTA Chairman and Chief Executive Officer Steve Simon
Power-off intelligent locking function
In case of power failure, the self-locking function will be activated to prevent sudden sliding down due to power outage and to avoid any accidents.
Strong power motor
The "heart" of the intelligent adjustable judge's chair, the powerful and efficient servo motor traction system;Realize quiet, smooth and fast elevation with high-quality experience; Overload protection switch, when the system current is overloaded or abnormal, it automatically enters the protection device to avoid system burnout.
Newly-developed environmentally friendly profiles
The structure is made of all-aluminum alloy profiles, and the components are made of stainless steel. It is solid and reliable, safe and environmentally friendly, and can adapt to various outdoor environments.
ErgonomicsErgonomics
The seat adopts an integrated molding technology and is equipped with a cushion that conforms to the ergonomic lumbar support design;It is made of high-resilience memory cotton with soft texture;It can disperse pressure on various parts and effectively relieve the backache and soreness in the waist and back caused by prolonged sitting.
International event standard design
It can rise and fall, operating from the lowest 0.5 meters up to a maximum of 2.1 meters.
Intelligent delay start and stop function for lifting and lowering operations
Maximize the degree of eliminating the sense of frustration during the lifting and lowering process.
High-precision heavy-duty sliding guide rails
Strong load-bearing capacity, maintaining unchanged shape under long-term pressure; smooth gliding, precise positioning.
Product Parameters
