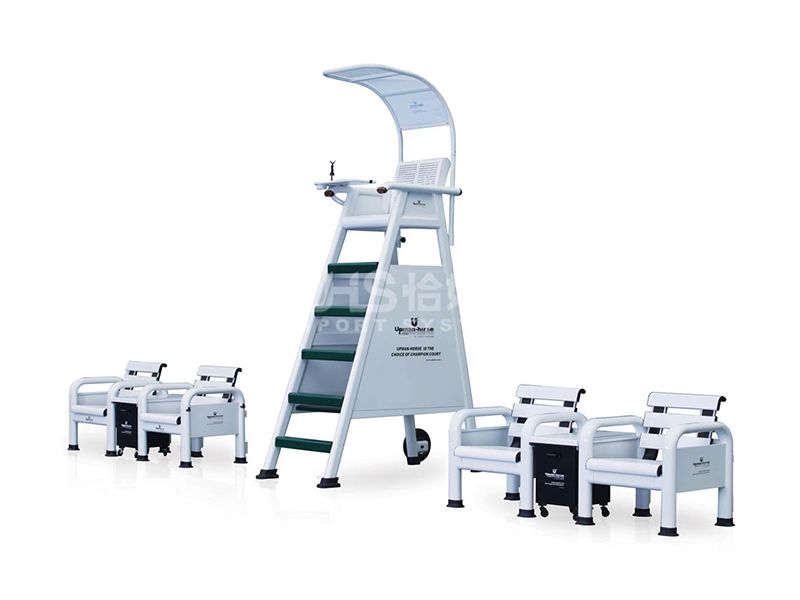

TP-2189 Tennis Court Umpire Chair Set

The TP-2189 tennis court umpire chair set pairs one TP-899 aluminum umpire chair with two TP-078 player rest chair units. It includes a rotating writing board and curved PC canopy, with microphone connection points on the chair. Designed for professional tennis events and venue projects, it coordinates officiating and player seating in one package.

Projects:

2010 Guangzhou Asian Games,

2010 China Open,

Guangzhou WTA International Women's Tennis Open,

2014 Wuhan Open

Inquire Now Next Product

From Tradition to Modernity

Generation 1

Satisfy the basic requirements for referees' officiating, but it is laborious to do so. There is no functionality or comfort to speak of.

Generation 2

Using steel materials, the structure becomes more stable and solid, emphasizing the use of materials and safety.

Generation 3

Add the mobile function. The aluminum alloy structure is rust-proof, lightweight and highly safe.

Generation 4(Latest)

Outstanding user experience design, with higher security, pursuing design and aesthetics, and achieving significant breakthroughs in functionality and comfort.

Epoch-Making Innovation

Open the Era of Intelligent Lifting

Overturn the Traditional Appearance Design

Make Umpine More Authoritative

Product Features

WTA Chairman and Chief Executive Officer Steve Simon

Power-off intelligent locking function

In case of power failure, the self-locking function will be activated to prevent sudden sliding down due to power outage and to avoid any accidents.

Strong power motor

The "heart" of the intelligent adjustable judge's chair, the powerful and efficient servo motor traction system;Realize quiet, smooth and fast elevation with high-quality experience; Overload protection switch, when the system current is overloaded or abnormal, it automatically enters the protection device to avoid system burnout.

Newly-developed environmentally friendly profiles

The structure is made of all-aluminum alloy profiles, and the components are made of stainless steel. It is solid and reliable, safe and environmentally friendly, and can adapt to various outdoor environments.

ErgonomicsErgonomics

The seat adopts an integrated molding technology and is equipped with a cushion that conforms to the ergonomic lumbar support design;It is made of high-resilience memory cotton with soft texture;It can disperse pressure on various parts and effectively relieve the backache and soreness in the waist and back caused by prolonged sitting.

International event standard design

It can rise and fall, operating from the lowest 0.5 meters up to a maximum of 2.1 meters.

Intelligent delay start and stop function for lifting and lowering operations

Maximize the degree of eliminating the sense of frustration during the lifting and lowering process.

High-precision heavy-duty sliding guide rails

Strong load-bearing capacity, maintaining unchanged shape under long-term pressure; smooth gliding, precise positioning.

Product Parameters

Material: Made of high-quality all-aluminum profiles, which can be fully recycled.

Process: The surface is coated with super weather-resistant polyester powder paint. The color will not peel off for ten years and can be used in all-weather environments.

Design: The TP-899 umpire chair is equipped with a rotating writing board, which is convenient for referees to make records. The arc-shaped PC board sunshade canopy effectively blocks the sunlight. It also has built-in microphone terminal sockets and microphone brackets.

Assembly: Umpire chair: TP-899; Rest chair: TP-078 × 2; Writing board; Rain canopy;

Specification: Umpire chair: Length 1930 × Width 1040 × Height 3340 mm

Rest chair (combination): Length 2035 × Width 720 × Height 810 mm;

Post-installation physical size tolerance ±20mm;

Color: White;

Total weight: 117kg;

Standard equipment: Umpire chair, rest chair, writing board, rain canopy;

Packaging instructions: Umpire chair: 3 pieces; Rest chair: 8 pieces; Storage bucket: 2 pieces.

Application: International-level professional competitions and advanced sports venues

TP-2189 Tennis Court Umpire Chair Set: What Is Included?

The TP-2189 tennis court umpire chair set brings the officiating position and courtside player seating together for professional tennis venues. It pairs the elevated TP-899 umpire chair with two TP-078 rest chair units in a coordinated white configuration. The rotating writing board provides a place for match records, while the curved PC canopy provides overhead shade for the chair umpire.

Component	Published Configuration	Role on Court
TP-899 umpire chair	One unit	Elevated seating and a dedicated working position for the chair umpire
TP-078 rest chair	Two units	Matching courtside rest seating for players
Officiating accessories	Rotating writing board and curved PC canopy	Support match records and overhead shade

Aluminum Construction for Outdoor Court Use

The aluminum profiles and weather-resistant powder-coated surfaces are specified for outdoor sports venues. The white finish gives this aluminum tennis umpire chair set a consistent appearance across its officiating chair and courtside rest seating. The curved PC canopy adds sun protection at the umpire position; the chair's rotating writing board remains accessible for records during a match.

Frequently Asked Questions

What chairs are included in the TP-2189 configuration?

The published configuration lists one TP-899 umpire chair and two TP-078 rest chair units, together with a writing board and canopy. Confirm the detailed component and packing list in the final quotation.

Does the set include a microphone?

The chair is described with microphone connection points and a bracket. A microphone itself is not specified in the published standard-equipment list, so include it explicitly in your inquiry if required.

Can the color or branding be customized?

The published TP-2189 color is white. UPHOS supports customization for sports seating; provide your project requirements so the available finish, branding scope and quotation can be confirmed.
