UHS-2023 Electric Adjustable Umpire Chair

Material: Made from fully recyclable aluminum alloy profiles.

Process: The surface is treated with super weather-resistant polyester powder coating, ensuring the color does not fade for ten years, suitable for all-weather use.

Design: The referee chair is equipped with a rotating writing board for easy record-keeping, a curved PC board sunshade to effectively block sunlight, and built-in microphone socket and microphone holder.

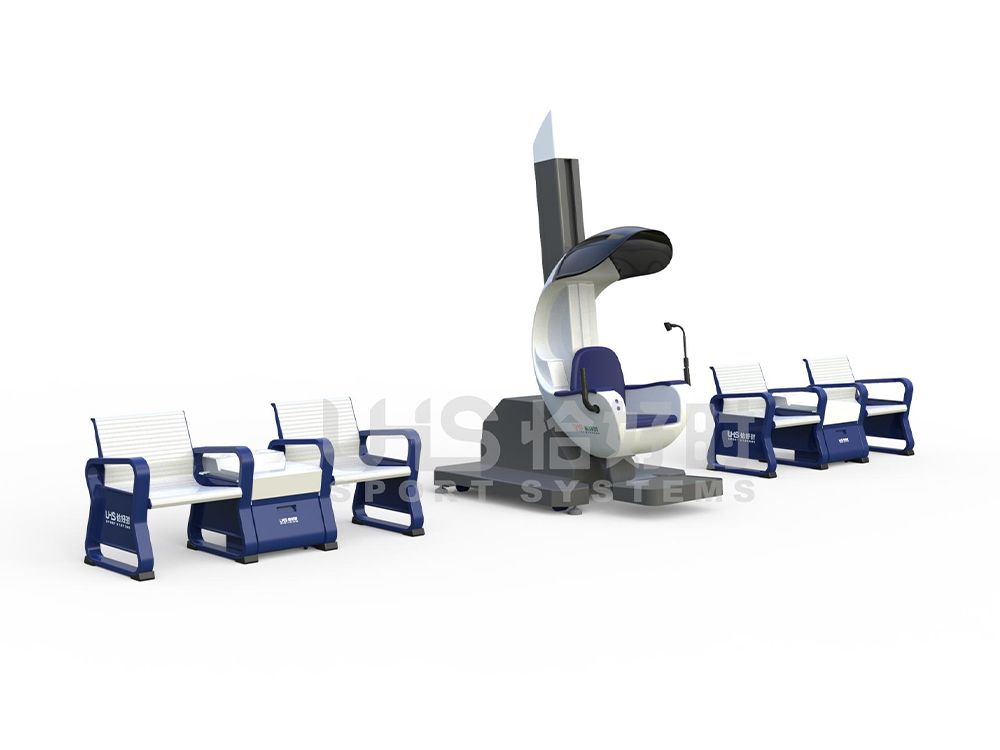

Combination Includes:

Umpire Chair: UHS-829

Rest Chairs: TP-308 × 2

Writing Board

Rain Canopy

Specifications:

Umpire Chair: Length 1777mm × Width 1263mm × Height 2664mm (Height 3690mm when raised); installation size tolerance ±50mm.

Rest Chairs (Combination): Length 1855mm × Width 677mm × Height 788mm; installation size tolerance ±20mm.

Color: Royal blue + white; gray.

Standard Configuration: Umpire chair, rest chairs, writing board, rain canopy.

Applicable Scope: International-level professional events and high-level sports venues.

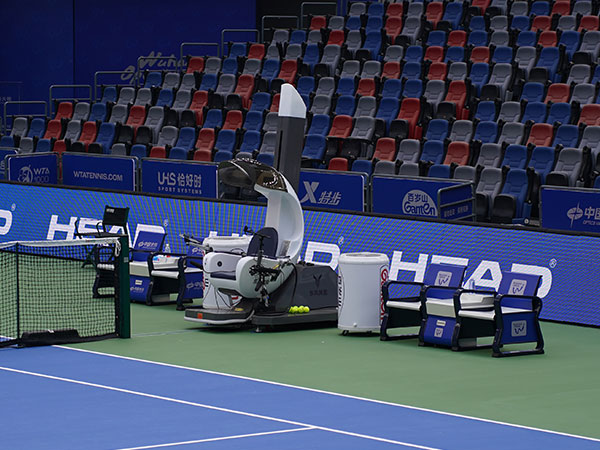

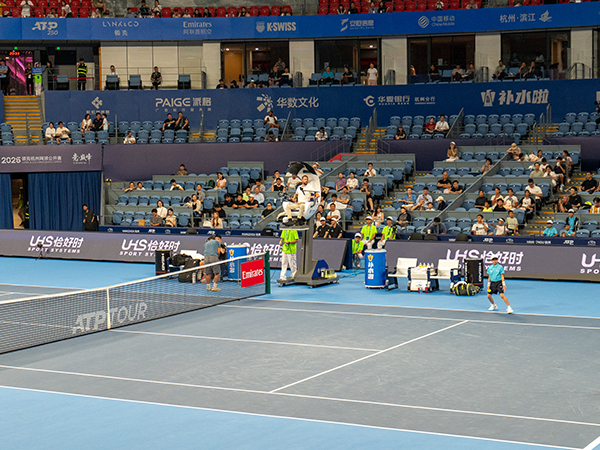

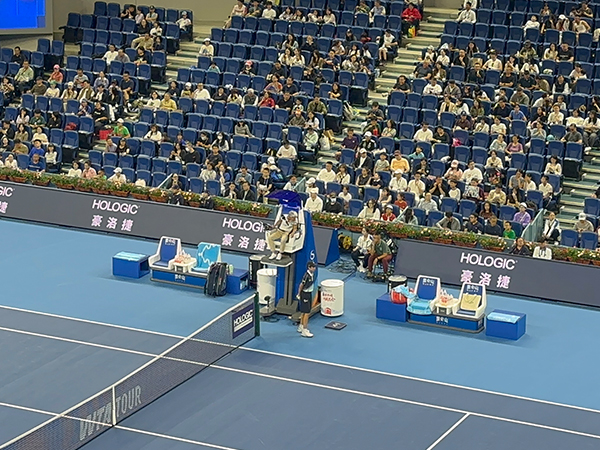

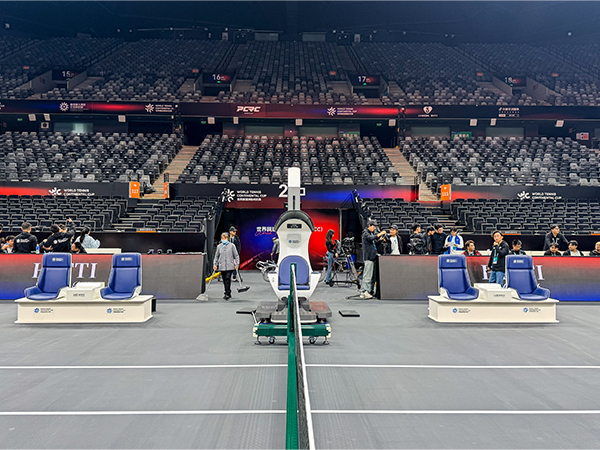

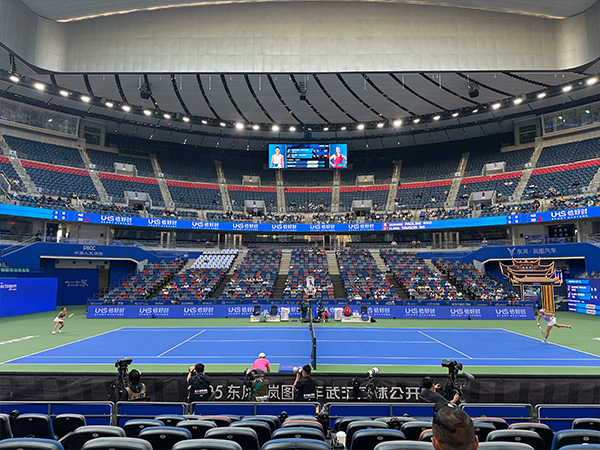

Usage Projects: Shanghai Rolex Masters,Wuhan Open

From Tradition to Modernity

Generation 1

Generation 1

Satisfy the basic requirements for referees' officiating, but it is laborious to do so. There is no functionality or comfort to speak of.

Generation 2

Generation 2

Using steel materials, the structure becomes more stable and solid, emphasizing the use of materials and safety.

Generation 3

Generation 3

Add the mobile function. The aluminum alloy structure is rust-proof, lightweight and highly safe.

Generation 4(Latest)

Generation 4(Latest)

Outstanding user experience design, with higher security, pursuing design and aesthetics, and achieving significant breakthroughs in functionality and comfort.

Epoch-Making Innovation

Open the Era of Intelligent Lifting Open the Era of Intelligent Lifting

Open the Era of Intelligent Lifting

Overturn the Traditional Appearance Design Overturn the Traditional Appearance Design

Overturn the Traditional Appearance Design

Make Umpine More Authoritative Make Umpine More Authoritative

Make Umpine More Authoritative

Product Features

WTA Chairman and Chief Executive Officer Steve  Simon

WTA Chairman and Chief Executive Officer Steve Simon

Power-off intelligent locking function

In case of power failure, the self-locking function will be activated to prevent sudden sliding down due to power outage and to avoid any accidents.

Strong power motor

The "heart" of the intelligent adjustable judge's chair, the powerful and efficient servo motor traction system;Realize quiet, smooth and fast elevation with high-quality experience; Overload protection switch, when the system current is overloaded or abnormal, it automatically enters the protection device to avoid system burnout.

Newly-developed environmentally friendly profiles

The structure is made of all-aluminum alloy profiles, and the components are made of stainless steel. It is solid and reliable, safe and environmentally friendly, and can adapt to various outdoor environments.

ErgonomicsErgonomics

The seat adopts an integrated molding technology and is equipped with a cushion that conforms to the ergonomic lumbar support design;It is made of high-resilience memory cotton with soft texture;It can disperse pressure on various parts and effectively relieve the backache and soreness in the waist and back caused by prolonged sitting.

International event standard design

It can rise and fall, operating from the lowest 0.5 meters up to a maximum of 2.1 meters.

Intelligent delay start and stop function for lifting and lowering operations

Maximize the degree of eliminating the sense of frustration during the lifting and lowering process.

High-precision heavy-duty sliding guide rails

Strong load-bearing capacity, maintaining unchanged shape under long-term pressure; smooth gliding, precise positioning.

Product Parameters
