HDL Series

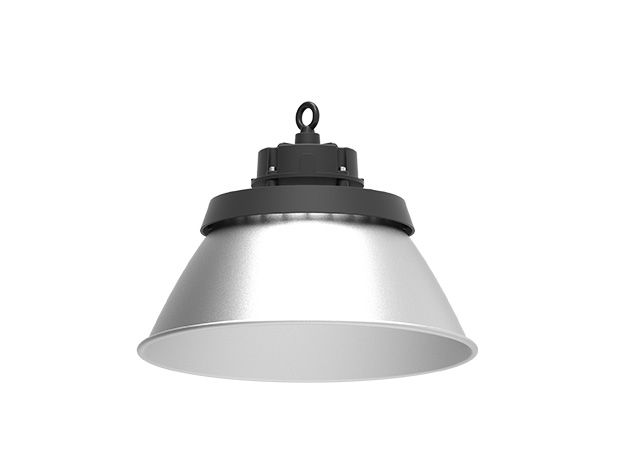

HDL Series Sports Court LED Floodlight — 100–200W, Up to 168 lm/W, IP65
High-efficacy LED court lighting engineered for uniform play, low glare and long life — optimized for basketball, tennis, pickleball and multi-sport facilities.
The basketball high bay light delivers competition-grade illumination with precision optics and high luminous efficacy, making it a cost-effective choice for outdoor and indoor sports courts. Available in 100W, 150W and 200W configurations, HDL fixtures offer selectable beam angles (60° / 90° / 120°), CRI options and professional dimming protocols — enabling facility managers and lighting designers to meet exacting uniformity and glare requirements for basketball, tennis, pickleball and multi-use courts.
Compared with legacy HID systems, modern LED court lighting like HDL reduces energy use, maintenance and downtime while improving visual clarity and player safety — benefits that contractors and stadium managers consistently prioritize when sourcing fixtures. For projects requiring broadcast-quality lighting or strict uniformity, pairing HDL optics with a site-specific photometric plan ensures compliance with recommended lux targets for competitive play.
UHS basketball high bay light benefits:
· The PC lens is arranged in a ring shape, resistant to UV aging, with high luminous efficiency output, up to 168 lm/W.
· There are three professional light distribution designs of 60°, 90° and 120°, with high luminous efficiency output. Various light distribution and output options can flexibly meet the different application requirements of the court.
· The color rendering index is selectable from 70 to 90, ensuring that athletes and balls on the court are clearly visible.
· The lamp body is designed with an overall die-casting molding, which is both beautiful and elegant. The back adopts a finned heat dissipation structure, with excellent heat dissipation effect. The internal recessed design of the lamp body and the air circulation air outlet can effectively optimize the air convection quality and improve the heat dissipation effect, fully ensuring the service life of the lamp.
· The lamp is equipped with an internal power supply, has instantaneous start-up function, a power factor of over 0.98, high power supply efficiency, and is safe and reliable.
· IP65 protection level, waterproof structure design + high-resistance wire silicone waterproof ring design, dual protection, safer.
· Lamp surface treatment: The lamp body heat sink adopts electrostatic powder spraying plasticization for high-temperature resistance, good weather resistance, and rich colors.
· Supports 0-10V, 1-10V, DALI, DMX512, etc. dimming control.
