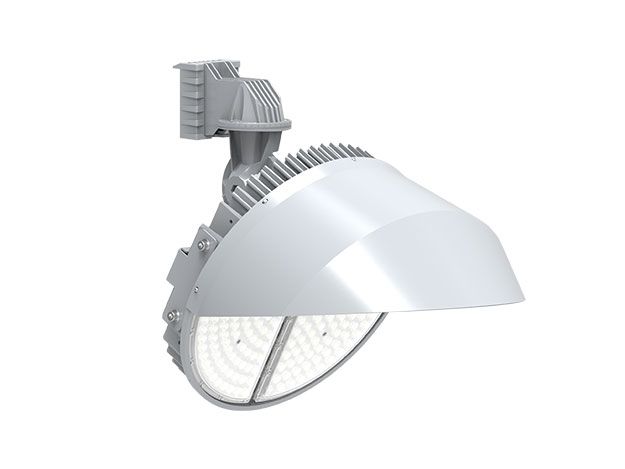

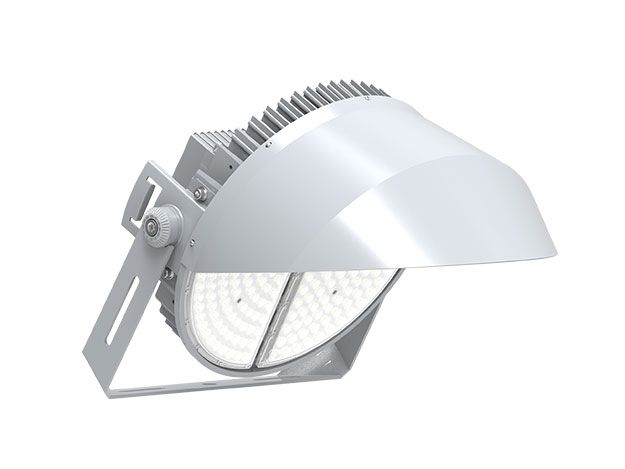

LSC/LCSD Series
The PC lenses are arranged in a matrix modular design with high luminous efficiency, reaching up to 158lm/W.
There are light-blocking apertures on the LED lenses, which effectively reduce the spillage of light and meet the visual requirements of stadiums for light.
There are various power and light distribution options, allowing for flexible responses to different stadium application needs.
Supports split-type and integrated-type power supply installation.
The overall shape of the lamp body is streamlined, and the internal design of the lamp is recessed. The fins on the back and the air outlet are designed with a fin-type heat dissipation structure to effectively optimize the air flow quality and improve the heat dissipation effect, fully ensuring the service life of the lamp.
The lamp body is equipped with an internal power supply, has instantaneous startup function, a power factor of over 0.98, high power supply efficiency, and is safe and reliable.
P66 protection level, waterproof structure design + high-resistance wire silicone waterproof ring design, providing dual protection and being safer.
Super strong rigidity bracket design, with the bracket strength capable of supporting more than 10 times the weight of the lamp body, and the safety factor is higher than industry standards.
The lamp wall bracket has precise scale identification, allowing for adjustment of the light projection direction at any angle.
Lamp surface treatment: The lamp body heat sink uses electrostatic powder spraying plastic coating for high-temperature resistance, good weather resistance, and good color saturation.
Supports 0-10V, 1-10V, DALI, DMX512, etc. dimming control.
