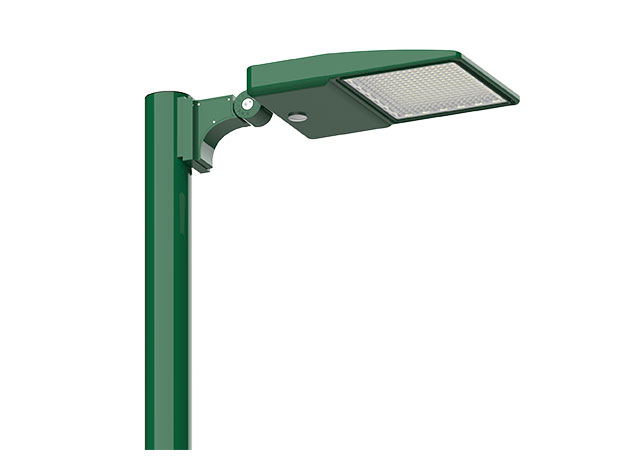

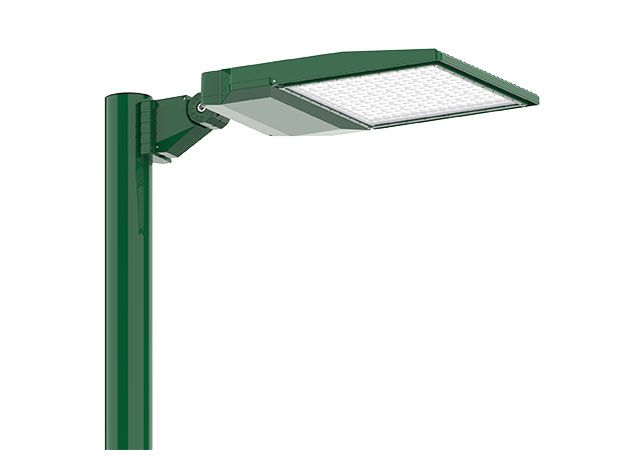

LTC/LTCS Series
Adopting a monolithic PC lens and a matrix arrangement design, it offers high luminous efficiency with an output of up to 157 lm/W.
The professional light distribution design for the outdoor tennis court with double-sided lighting fixtures effectively enhances the utilization rate of light and controls the spillage of light.
The color rendering index is selectable from 70 to 90, ensuring that athletes and balls on the court are clearly visible.
The lightweight design, with an integrated molded lamp body that is elegant and decent. The backside adopts a finned heat dissipation structure, providing good heat dissipation performance.
The hinge-type power supply sealed cover design, with built-in power supply, instantaneous start-up function, a power factor of over 0.98, high power supply efficiency, and safety and reliability.
P66 protection level, waterproof structure design + high-resistance wire silicone waterproof ring design, providing dual protection and greater safety.
Super tough bracket design, with a bracket that supports the lamp body weight 10 times or more, and a safety factor higher than industry standards. Simple sleeve direct plug-in installation, with internal wiring not exposed, effectively reducing the frequency of maintenance.
Multiple bracket designs are available, including fixed-angle and adjustable-angle designs. The adjustable-angle bracket comes with scale identification and can be adjusted to any angle for the light projection direction.
Simple sleeve direct plug-in installation, with internal wiring not exposed, effectively reducing the frequency of maintenance.
Lamp surface treatment: The lamp body heat sink uses electrostatic powder spray coating for high-temperature resistance, good weather resistance, and rich and saturated colors.
Supports 0-10V, 1-10V, DALI, DMX512, etc. dimming control.
